    wind solar hybrid system

    wind solar hybrid system

    Why are Customers Considering Wind Power
    Offset rising energy costs
    Marketing and increased sales
    Currently the lowest cost renewable
    Provides a reasonable return on investment
    Reduce dependence on fossil fuels


    “It’s just the right thing to do”
    Dick Bergstrom -Bergstrom Automotive


    Who’s Installing Wind Power
      Commercial Businesses
      Industrial Businesses
      Agricultural Businesses
      National Retailers
      Schools and Universities
      Municipalities
      Non-profit Organizations


    Since 2010 the cost of solar power has reduced significantly thus eroding the economic value of residential wind turbines. Today, solar power can produce 60% more power for the same money spent on wind turbines! This market change has ended the world Department of Energy “Home or Residential Small Wind Turbines”. It has come, gone, doubled in price and resulted in high annual maintenance cost. While the cost of Solar Energy has dropped 80%, produces the same power (spin your meter backwards) as wind turbines for nearly 60% less, has no moving parts and requires no maintenance!  No matter how much wind you think you have, affordable solar power for world is here!


    However, it's meaning no demands on small wind turbine for home  of course answer is no, althought solar panel cost is cheap but also has boundedness while at night and some place where weak sunshine or somewhere do not have enough space or land to install solar panels, so wind turbine also can be as a complement energy and needs to put in considering, supplement for solar, for diesel, for working home appliances


    According to many renewable energy experts, a small "hybrid" electric system that combines wind and solar (photovoltaic) technologies offers several advantages over either single system.
    In much of the places, wind speeds are low in the summer when the sun shines brightest and longest. The wind is strong in the winter when less sunlight is available. Because the peak operating times for wind and solar systems occur at different times of the day and year, hybrid systems are more likely to produce power when you need it.

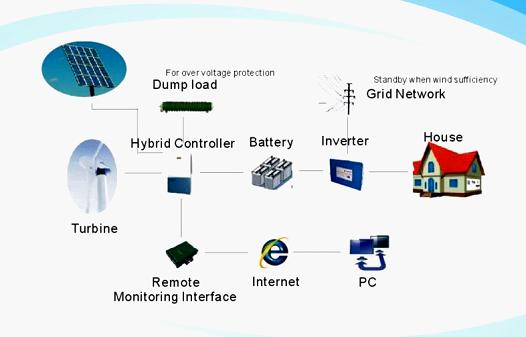

    System include:


    1. PV Array: A number of PV panels connected in series and/or in parallel giving a DC output out of the incident irradiance. Orientation and tilt of these panels are important design parameters, as well as shading from surrounding obstructions.
    2. Wind turbine: This is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.
    3. Hybrid controller: control battery bank charge and discharge reasonable and safety.
    4. Battery bank: can be a single battery or multiple batteries connected together to create essentially one large battery of the required voltage and amp-hour capacity. In some ways the battery configuration and capacity are the most important electrical power decision to make, and a wise choice can help guarantee a steady supply of electrical power as well as a system that is simple to operate and maintain.
    5. Inverter: A power converter that  °inverts ± the DC power from the panels into AC power.
    6. Loads: Stands for the network connected appliances in the building that are fed from the inverter (AC loads), or from the battery bank (DC loads).

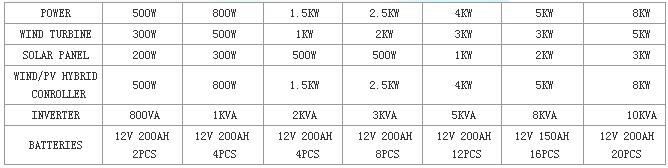

    Main parameters:





    Product Advantages:


    Give customer di f ferent chooses: fixed pitch or variable
    pitch, upwind or downwind, with tail or without tail.
      Direct -drive permanent magnet generator, over load
    capacity of 2 times,no special maintenance.
      Optimal wind design, wind turnel exper iences by tests,
    high eff iciency and low noise, meets aerodynamic
    standards.
      Protect ion Methods: Aerodynamic automatic brake [blade
    pi tch cont rol led brake]; Electr icmagnet automatically
    brake ; Active yawing protect ion; 4> Mechanical Yawing
    protect ion; 5> Manual shut down;
      Tower dif ferent opt ions: Hydraul ic tower; free-standing
    tower, guyed wire tower, level folding tower ; latt ice tower
      Passive /active pi tch technologies automatically regulate
    rotator speed and and yawing protect ion to ensure power
    output stably, security and reliabil i ty.
      Breezes star t-up, 2 grade wind generates
    power,excel lence low-wind operation character ics.
      Enclosed slip ring to prevent twisting cable wire.
      Professional for on-grid, off-grid and grid-network mutual
    system solut ion.
      The all-round ant i-cor rosion methods protects the turbine
    from atmospheric,salt spray and Aeolian erosion;
      Above 3Kw turbine use tai lless var iable pitch compact its
    design to specific region requirement of the erect permit

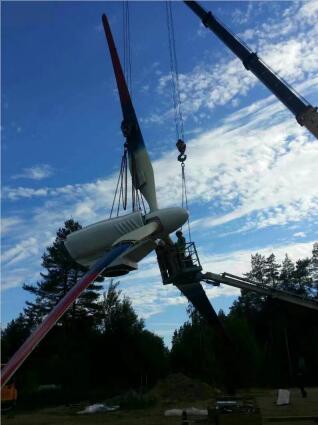

    Unique Tip-Down Tower for Ease of Service
